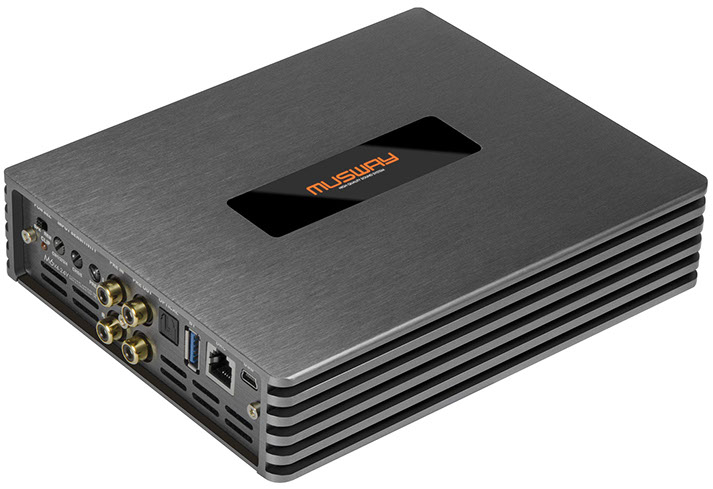

M6V4-24V-512K

6-CHANNEL CLASS D AMPLIFIER WITH 8-CHANNEL DSP

Now also as 24V Version available: The 6-channel M6 power amplifier is not only a bestseller in the Musway range, but has been writing car hifi history for years: In the Car & Hifi issue 01/2025, the new v4 version secured two first places: It was awarded “BEST PRODUCT” in the top class and was named “PRODUCT OF THE YEAR 2025” by the editors in the DSP power amplifier category. The excellent sound and the noticeable increase in performance overshadowed everything.

High-quality components are also a matter of course for Musway in the area of ​​signal processors: The Analog Devices™ ADAU1452 is used as a DSP chip, combined with signal converters from Burr-Brown™. Sound adjustments can be made in a flash using a smartphone app or classic PC software. Whether frequency response or runtime correction, Q factor or runtime adjustment, phase rotation or complex crossover configurations, you have a wide range of settings at your disposal to professionally meet all your audiophile requirements. Plug+Play via MX-Connect™ or ISO variant.

The new M6v4-512K bears the "512K" designation, indicating the larger memory chip that now enables more features. All 512K models now have a 10-band input EQ including high- and low-shelf filters as well as first- and second-order all-pass filters.

Features:

• High Level Input with EPS® (Error Protection System)

• Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)

• Burr-Brown ADC digital converters (PCM3168A) and Analog Devices DSP (ADAU1466)

• 512k Bit DSP technology, controllable via PC software or Smartphone App

• Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs

• Adjustable group time correction
• Input and output EQ with high-, low-shelf, and all-pass filters
• Software automatically detects connected hardware
• 6 dB/octave filter with high-level mix function
• Send and receive settings via WhatsApp

• Inclusive 2,50 m MX-Connect™ Cable Harness on ISO

• Plug+Play with vehicle-specific cable sets

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA-HD for Audio Streaming & App Control (optional)

• Digital remote control DRC1 and myCON for controlling various DSP functions (optional)

• Quick Connect Terminal to connect MUSWAY Subwoofer Systems

EUR 649,00

Manufacturer's suggested retail price, changes and mistakes reserved.
